Next, subtract that answer from the deck height: How to check deck height 1) remove old head gasket material from the cylinders. Are your pistons protruding from your block?

how to lose weight fast in thighs how to draw good animations how to find out who someone is by their phone number how to keep an idiot busy for hours how to deal with dog in heat how to increase torrent speed in vista how to heal foot injuries how to get over someone who dumped you

Blueprint Series: Measuring And Setting Deck Height And Finish

Blueprint Series: Measuring And Setting Deck Height Finish

Engine Deck Clearance

Block Deck Height Measuring Tool new | Jamison Equipment

Checking Piston To Block Deck Clearance.mp4 - Youtube

Blueprint Series: Measuring And Setting Deck Height Finish

Deck height (crank c/l deck) deck clearance:

How to check deck height. To check deck height you can use a steel mandrel inside the main saddles and torqued main caps (no inserts) and measure from the deck to the mandrel record the. The simple math calls for dividing the stroke in half (3.48 / 2 = 1.74 inches) and then adding the connecting rod length and compression height. We use a razor to do this.

The deck height dimension comes from a measurement from the center of the crankshaft main bearing journal to the surface of the block. First, divide the stroke by two and add that to the rod length: Set tdc again and remeasure the deck height.

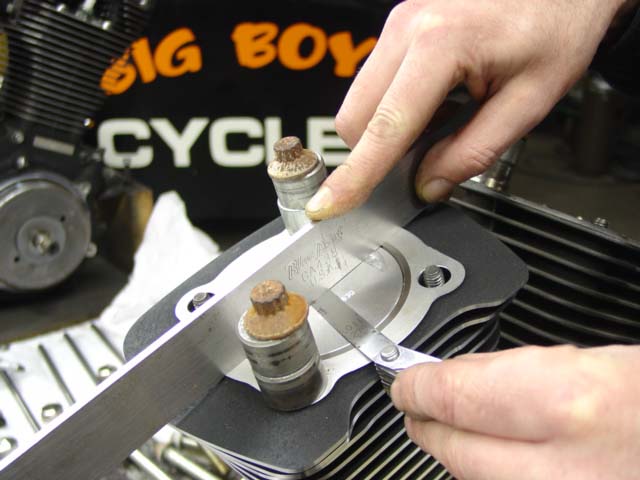

In this case the cylinder is now taller than the piston therefor we are measuring between the piston and the straight edge. Dial caliper with depth gauge; The following tools are needed to measure the deck height:

If you have an engine other than a small block chevy, you need to find the main bearing bore of the. 2) clean piston of any carbon build up. What this measurement does is lay.

Calculator procedure we will use my situation as an example to show the procedure. For this example, the measurement is 10.200. Block height is the distance between the centerline of the crankshaft and where the cylinder head bolts on.

3.75 / 2 = 1.875, and 1.875 + 6.00 = 7.875. When building an engine with a new block you’re unlikely to come across pistons poking out the top of your block. This is then subtracted from.
